熱銷產品

快速查看

前往詳情 >

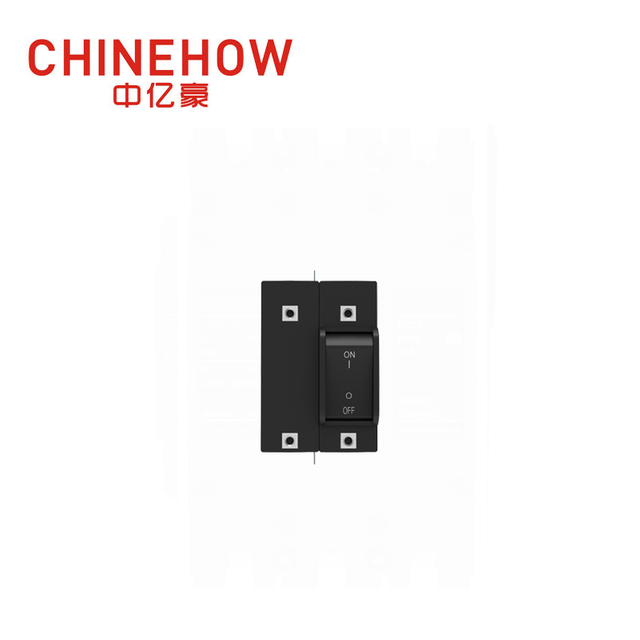

CVP-TH 帶護罩和 M5 絲槓母線的液壓磁力斷路器角搖臂執行器 2P

數量：

Stock 0

加入詢價籃

CVP-TH 帶護罩和 M5 絲槓母線的液壓磁力斷路器角搖臂執行器 2P

品牌: Chinehow

商品編碼:

型號: CVP-TH

簡介:

更多 »
快速查看

前往詳情 >

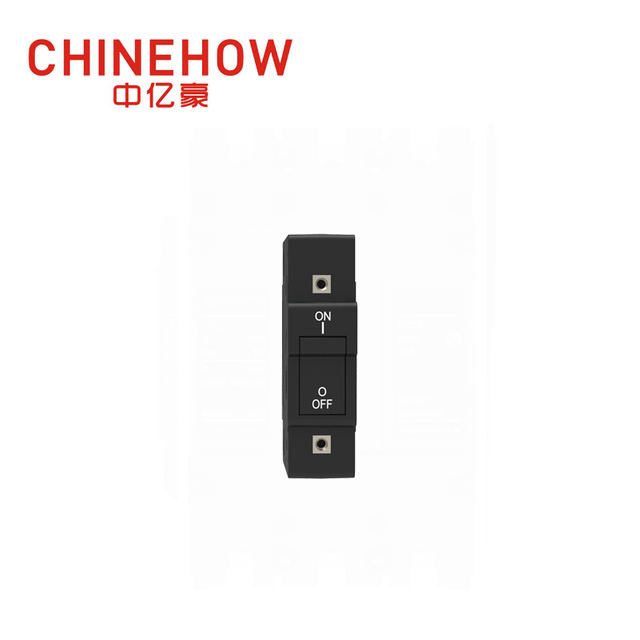

CVP-FR-L 液壓磁力斷路器扁搖臂執行器 1P

數量：

Stock 0

加入詢價籃

CVP-FR-L 液壓磁力斷路器扁搖臂執行器 1P

品牌: Chinehow

商品編碼:

型號: CVP-FR-L

簡介:

更多 »
快速查看

前往詳情 >

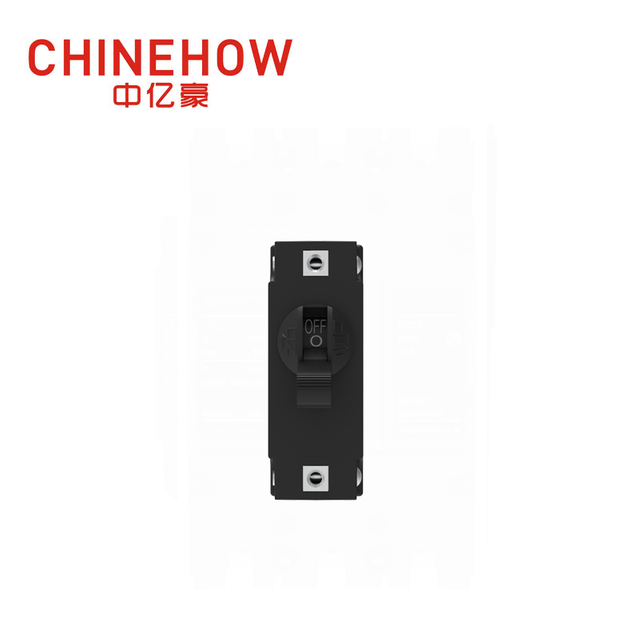

CVP-TH 液壓電磁斷路器長柄執行器，帶 M4 螺釘，帶上端凸耳 1P

數量：

Stock 0

加入詢價籃

CVP-TH 液壓電磁斷路器長柄執行器，帶 M4 螺釘，帶上端凸耳 1P

品牌: Chinehow

商品編碼:

型號: CVP-TH

簡介:
SERIES: CVP-TH VOLTAGE: 120/250V AC POLES: 1 Pole DELAY CURVE: A4 CURRENT RATING: 1~50A MOUNTING TYPE: M3 Screw-in TERMINALS: M5 Upturned Screw Bus ACTUATOR: Black Angled rocker ACTUATOR MARK: ON-OFF I-O, Without Rated Amps AGENCY APPROVAL: UL489, TUV, CE, CCC ACCESSORIES: M5 External Tooth Lockwashers, M5 Screw AUXILIARY: / REV.: A

更多 »
快速查看

前往詳情 >

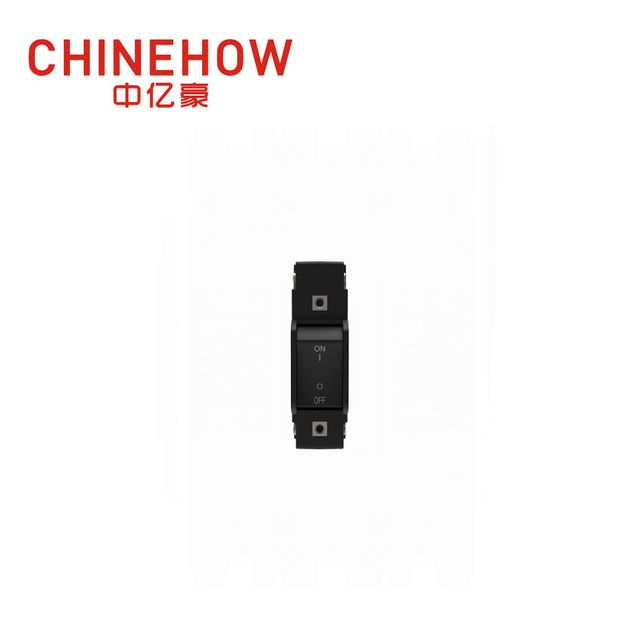

CVP-FR 液壓電磁斷路器角搖桿執行器帶防護罩帶 M6 螺栓和輔助開關 1P

數量：

Stock 0

加入詢價籃

CVP-FR 液壓電磁斷路器角搖桿執行器帶防護罩帶 M6 螺栓和輔助開關 1P

品牌: Chinehow

商品編碼:

型號: CVP-FR

簡介:

更多 »
視頻

快速查看

前往詳情 >

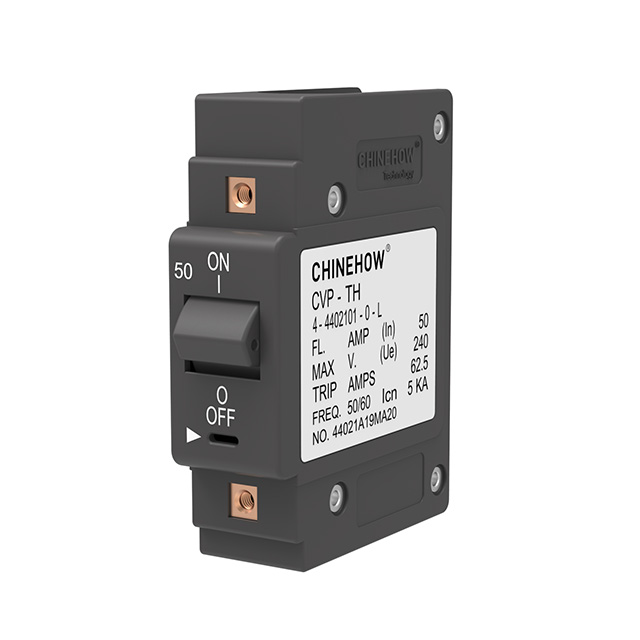

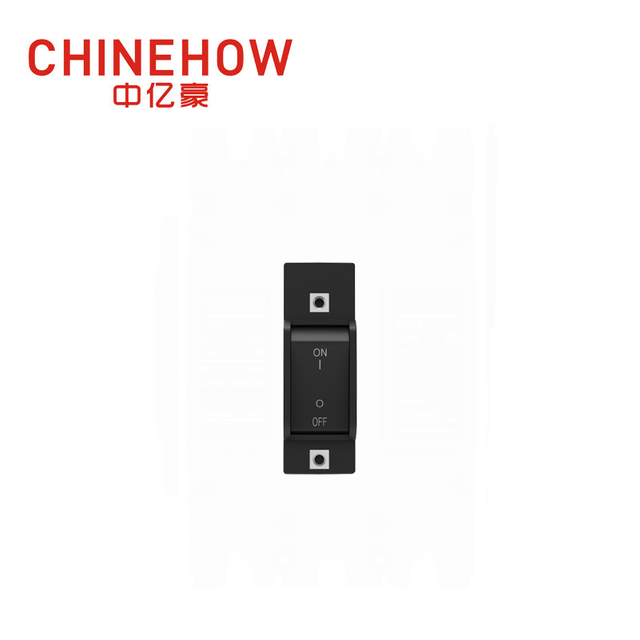

CVP-TH 帶護罩和凸耳的液壓磁力斷路器角搖臂執行器(QC250) 1P

數量：

Stock 0

加入詢價籃

CVP-TH 帶護罩和凸耳的液壓磁力斷路器角搖臂執行器(QC250) 1P

品牌: Chinehow

商品編碼:

型號: CVP-TH

簡介:
Number of Poles 1,2,3 poles (optional) CURRENT
RATINGS AC 0.1-50A(1&2&3POLES)
DC 0.1-50A(1&2&3POLES) MAXIMUM
VOLTAGE 250V AC,50/60Hz
80V DC VOLTAGE COIL 6V DC,12V DC;120V AC AUXILIARY SWITCH
RATING SPDT;7A,250V AC,7A(Res),28V DC,4A(Ind)0.25A-28V DC,0.1A-125V AC (optional) INSULATION RESISTANCE ≥100MΩ at 500V DC DIELECTRIC STRENGTH 1500V,50/60Hz between terminals for eletrical 50/60Hz RESISTANCE/
IMPEDANCE The value between line and load terminal under ON status ENDURANCE Mechanical life is 10k cycles(6 times operation per min.)and electrical life is 6k cycles at rated current and voltage TRIP-FREE The circuit breaker will tripped inside even if the handle forcibly held in the ON position when overload TRIP INDICETION Handle is in OFF position when overloaded.For mid-trip,handle is in middle position when overloaded TEMPERATURE OPERATION -40℃ to +85℃ RECOMMENDED TORQUE #6-32 or M3 mounting inserts 0.8-1.0 Nm; #8-32 or M4 screw terminals 1.4-1.7 Nm; #10-32 or M5 screw terminals 1.7-2.3 Nm; #1/4-20 or M6 screw terminals 3.4-4.0 Nm MAXIMUM POLES 1 Pole MOUNTING TYPE screw-in (optional) TERMINALS Push-in(Q.C) , upturning,screw-in,bus screw-in (optional) ACTUATOR paddle,baton,push-pull,push to reset button and color,legend can be customized (optional) COLOR OF CASE black,grey(optional) STANDARD EN60934,UL1077,GB17701,UL489A

更多 »
快速查看

前往詳情 >

CVP-TH 液壓磁力斷路器扁搖臂執行器，帶 M5 絲槓母線 2P

數量：

Stock 0

加入詢價籃

CVP-TH 液壓磁力斷路器扁搖臂執行器，帶 M5 絲槓母線 2P

品牌: Chinehow

商品編碼:

型號: CVP-TH

簡介:

更多 »
視頻

快速查看

前往詳情 >

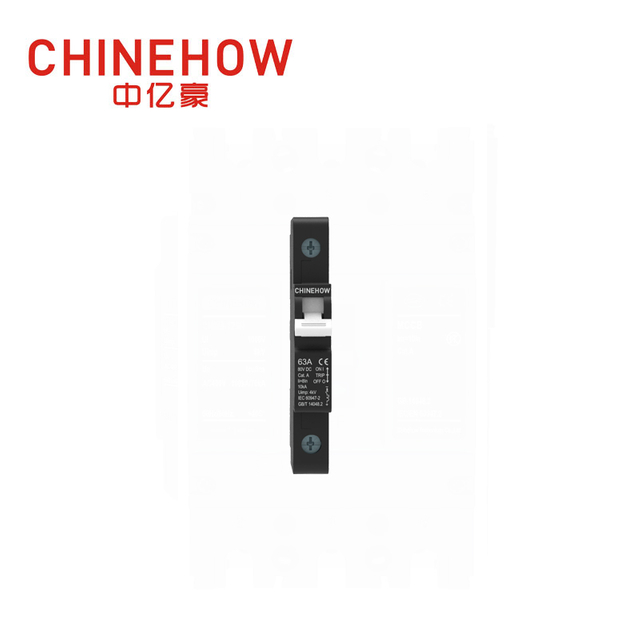

CVP-QM 液壓式電磁斷路器 1P

數量：

Stock 0

加入詢價籃

CVP-QM 液壓式電磁斷路器 1P

品牌: Chinehow

商品編碼:

型號: CVP質量管理

簡介:
Place of Origin:Zhejiang, China
Brand Name:Chinehow
Model Number:CVP-QM
Breaking Capacity:6KA
Rated Voltage:DC80V,AC250
Rated Current:0.1-100A
BCD Curve:C
Rated Frequency (Hz):50/60HZ
Number of Pole:1
Type:Magnetic
Function:Hydraulic Magnetic Circuit Breaker
Rated voltage:DC 80V
Color:Black,Gray
MODULE WIDTH:13mm Module Width
DELAY CURVE:DM (Instantaneous Trip Point - 6~11 In)
CURRENT RATING:63A
MOUNTING TYPE:Dual Mount, 57mm Escutcheon, Black Body

更多 »
